In network cabling, establishing a seamless connection between diverse components is critical to an efficient and reliable network infrastructure. Two pivotal components in this framework are the Ethernet connection and the Ethernet Keystone jack. While both serve the primary purpose of connecting cabling within a network, their applications and functions bear distinct differences. This article delves into the nuances between Ethernet couplers and Ethernet Keystone jacks, providing insights to help you navigate their use in your networking projects.
Understand the basics of Ethernet couplers and Keystone jacks
Before we dive into the differences, let’s briefly define what each component entails, including network cabling, which is essential for creating reliable network connections using different connector types such as RJ45 connectors and keystone jacks.

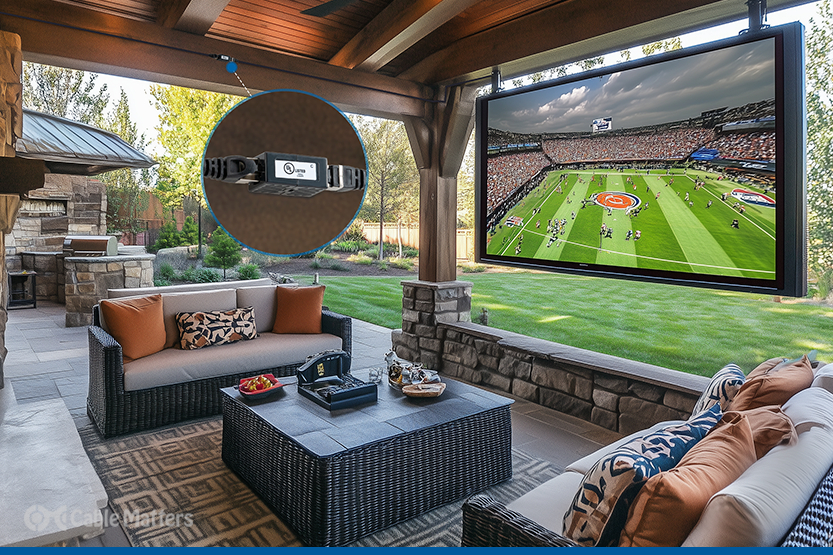

Ethernet couplers
An Ethernet connection is a female-to-female connector that connects the two ends of a cable together. It is designed to provide a clean and standard way to extend the length of an Ethernet cable without compromising signal integrity. Ethernet couplers come in different types, including shielded, unshielded, surface mountable, and basic couplers.

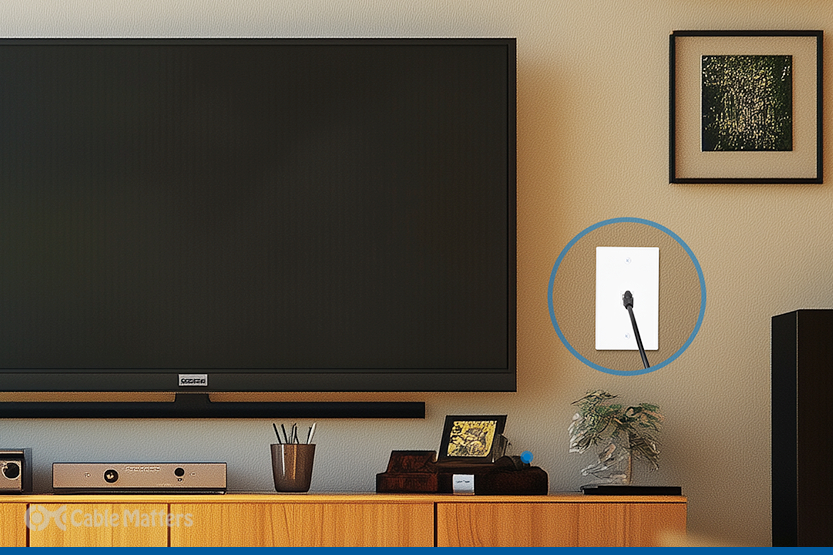

Keystone Ethernet jacks
An Ethernet Keystone jack, on the other hand, is a female connector that terminates the cable on one end and provides a connection point for the patch cable on the other end. These plugs are primarily used for network cables, and are standardized to fit keyboards, wall panels, and patch panels. They come in categories such as Cat5e, Cat6, Cat6a and above, each of which supports different speeds and bandwidths suitable for different network requirements.
For an easier installation process, tool-free skew sockets provide an easy-to-use alternative to traditional sockets that require a drilling tool.
Key Features and Benefits of Ethernet Couplers
Ethernet couplers are designed to provide a reliable and efficient way to connect two Ethernet cables together. Its compact design allows it to fit seamlessly into a baseboard, patch panel, or mount on a wall or desk, making it an ideal choice for structured cabling systems. Installation is very easy, requiring no special tools or training, making it accessible to both professionals and DIY enthusiasts.
One of the notable features of Ethernet couplers is their high-performance capability. It supports high data transfer rates, ensuring that your network runs smoothly and efficiently. Ethernet couplers are available in different categories such as Cat5e, Cat6, Cat6a and Cat8, and they provide the flexibility to meet different networking needs.
The benefits of using Ethernet couplers are numerous. It dramatically improves network performance by providing a reliable connection between two Ethernet cables, reducing downtime and enhancing overall efficiency. Their versatility makes them suitable for a wide range of applications, from home networks to large-scale enterprise settings. In addition, Ethernet couplers are a cost-effective solution, eliminating the need to run expensive and time-consuming cables. The easy installation process adds to its appeal, making it a practical choice for quick and efficient network modifications.
Comparison of Ethernet couplers vs. Keystone Ethernet jacks
The primary difference between an Ethernet coupler and an Ethernet Keystone jack lies in their applications within a network setup.
Purpose and function
Ethernet couplers are mainly used for cabling purposes. It allows both ends of the cable to be connected to effectively increase cable length without the need for additional tools or crimping. This is especially useful in scenarios where existing cables are a little short of reaching their destination, or when quick adjustments are needed.
Ethernet Keystone jacks serve as termination points for network cables. They require a more permanent setup, as the cable is terminated directly to the plug, and changes in cable length or routing involve re-terminating or connecting additional cables.
Installation and flexibility
Simplicity to Ethernet Couplers provide a plug-and-play solution, making them ideal for temporary setups or where frequent changes may be necessary. It reduces the complexity and time it takes to expand network connections.
Ethernet Keystone jacks, although they require a more complex installation process, provide a more stable and secure connection. They are best suited for permanent installations where reliability and performance over longer periods is critical. For a simpler installation option, consider using Keystone toolless plugs, which do not require a drilling tool and are easy to use for DIY network setups.
Performance and signal integrity
While Ethernet couplers effectively maintain signal integrity over short spans, they may introduce additional points of signal degradation over longer distances. As an Ethernet coupler, it is necessary to consider the total length of the cables involved and the signal requirements of the connected devices.
Keystone Ethernet jacks ensure a high-quality connection with minimal signal loss, as each cable is terminated directly into the jack. This can be especially important in high-speed networks where every bit of signal integrity is counted.
Performance Considerations for Ethernet Cables
When choosing an Ethernet cable, several performance considerations are taken into account to ensure you get the most reliable and efficient connections. The class rating of a cable is crucial, as higher classes such as Cat7 and Cat8 support faster data transfer rates, making them suitable for high-speed networks.
Bandwidth is another critical factor. Ethernet cables are designed to support specific bandwidths, with higher bandwidth enabling faster data transfer rates. Attenuation or signal loss over distance can affect cable performance, so it is essential to choose cables with low attenuation rates to maintain signal integrity.
Interference from electromagnetic (EMI) and radio frequency (RFI) sources can also affect the performance of an Ethernet cable. Choose cables with shielding or other features that reduce interference. Finally, consider the maximum cable distance. Ethernet cables have a specific maximum distance beyond which they may not work reliably. Make sure you select a cable that meets the distance requirements of your network setup.
By taking these performance factors into consideration, you can choose an Ethernet cable that meets your specific needs, providing reliable and efficient network connections.
Choose the correct coupler or lever
Choosing between an Ethernet coupler and an Ethernet Keystone jack depends on your specific network requirements, including setup time, cable lengths, and the need for flexibility in cable management. For short-term solutions or when rapid adaptability is needed, Ethernet couplers provide an effective option. However, for long-term high-performance networking requirements, Ethernet Keystone jacks provide a more robust solution. Additionally, surface-mount boxes can be used to install Keystone jacks, providing a standard point for terminating Ethernet cables and enhancing network resiliency.
In conclusion, both Ethernet couplers and Ethernet Keystone jacks play vital roles in networking. Understanding their distinct purposes and functions enables network administrators and enthusiasts to make informed decisions, ensuring a stable, efficient and tailored network infrastructure.
Installation and management of keystone jacks
Keystone jacks are essential for terminating Ethernet cables, providing a reliable connection point within your network. To ensure successful installation and management, follow these tips:
First, choose the appropriate Keystone jack for the class of your Ethernet cable. Whether you’re using Cat5e, Cat6, or higher, choosing a compatible socket is essential for optimal performance. Always follow the manufacturer’s installation instructions to avoid any problems.
It is also important to use the right tools. It is necessary to use a punching tool to securely connect the Ethernet cable to the keystone jack. After installation, test the connection to make sure it is working properly. This step helps identify any potential issues early, saving time and effort in the long run.
Marking the keystone socket is another best practice. Proper labeling helps to easily identify connections, making network management clearer. By following these tips, you can ensure that Keystone jacks are installed and managed correctly, providing reliable and efficient network connections.
Ethernet couplers and Keystone jacks are indispensable components of structured cabling systems, providing reliable and efficient ways to connect and terminate Ethernet cables. Understanding the key features and benefits of Ethernet connectors, such as their compact design, high performance, and cost-effectiveness, can help you make informed decisions for your network setup. Likewise, considering performance factors such as class rating, bandwidth, attenuation, interference, and distance when selecting Ethernet cables ensures you get the best connections possible.
By following best practices for installing and managing Keystone sockets, you can maintain a robust and efficient network infrastructure. Whether you’re extending lengths of cable with couplers or terminating cables with backbone jacks, these components play a vital role in achieving a stable, high-performance network.
